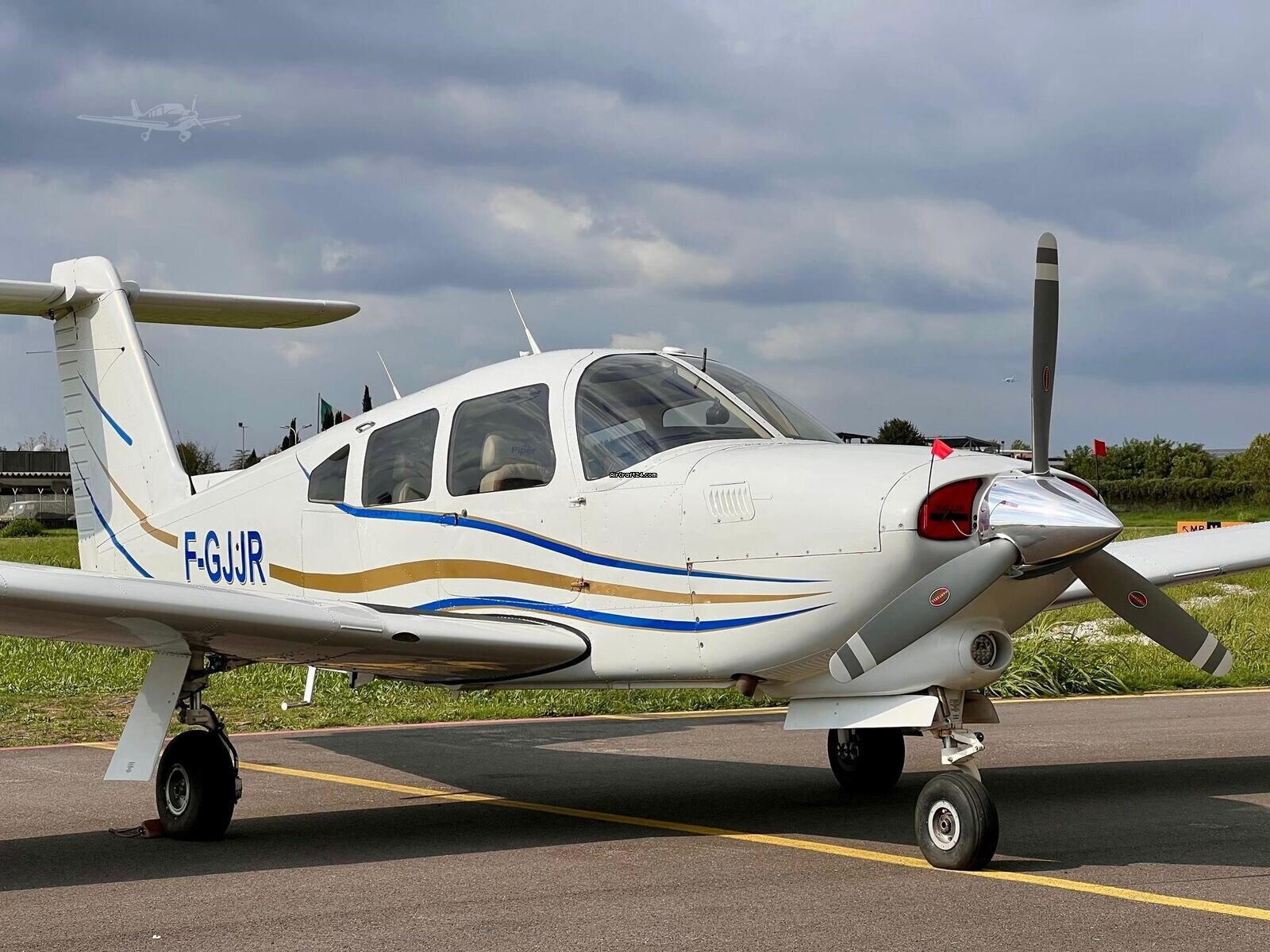

Piper Turbo Arrow IV |
US$ 201.096
€ 180.000 |
Обзор
| Список альбомов | | Тип: | одиночный пропеллер | | Производитель: | Piper | | модель: | Turbo Arrow IV | | год выпуска: | 1984 | | Регистрационный номер: | F-GJJR | | Серийный номер.: | 28R-8431016 | | местонахождение: | Италия, Bergamo | | Общее время (TTAF): | 3 h | | цена: | € 180.000
(~ US$ 201.096) | | Полные сведения |
| Провайдеры |
Aeromeccanica S.A
Aeroporto Cantonale di Locarno
6596 Gordola
Швейцария
Тел.: +41-91-2103128
Факс: +41-91-7450037 |
| Контакт с продавцом |
|
|
|
Подробности
| Список альбомов | | Тип: | одиночный пропеллер | | Производитель: | Piper | | модель: | Turbo Arrow IV | | год выпуска: | 1984 | | Регистрационный номер: | F-GJJR | | Серийный номер.: | 28R-8431016 | | местонахождение: | Италия, Bergamo | | Общее время (TTAF): | 3 h | | цена: | € 180.000
(~ US$ 201.096) |
| Авионика | | Garmin GNS430W flight deck; 2 x Garmin GNS430W NAV/COM/GPS (GPS 1 and GPS 2); NSD360 HSI; King KI209 VOR indicator; King KN62A DME; King KR87 ADF with KI227 indicator; Garmin GMA340 audio panel/marker beacon; Trig TT31 Mode S transponder; Artex ME-406 ELT with panel-mounted switch; Century 41 autopilot (listed as currently inoperative); D120-P2-T encoding altimeter; radio master switch; co-pilot attitude indicator; Alcor single-probe EGT; Hobbs meter. WAAS: yes. |
| внешний вид | | White with blue and gold stripes; seller describes it as in good condition. |
| интерьер | | Beige leather with sheepskin covers on pilot seats; refurbished in 2022; seller describes it as in very good condition. Four passenger seats. |
| Замечания / Прочее | Beautiful and very well maintained Piper Turbo Arrow IV. 4 owners since new Noise Certificate, 77.0 dB(A) Missing original US Log Books dating from the manufacture date up to French import and certification in December 1990 at TT: 713.3 hours 2000 Hours inspection completed in France in December 1990 Engine overhauled 7 Jaunary 2016 and propeller replaced at the same time Specification subject to verificaction by purchaser
Engine details: Continental TSIO360FB, serial 299585-R, 200 HP, turbocharged. Listing field: 195.48 SMOH; engine notes: TT 1,837.33. TBO 1,800; listing states 1,604 hours remaining to overhaul.
Overhaul details: 195.48 SMOH; seller states engine was overhauled by Loma Air Belgium on 7 January 2016. In 2021 at 3,506 airframe hours, all cylinders were removed, inspected and reinstalled by Aeroengine Italy. 2022 work listed: magnetos inspection, alternator bench check, fuel-injection nozzles/system/pump inspection, air throttle and manifold-valve overhaul, oil-cooler cleaning, and spark-plug replacement.
IFR. Hartzell PHC-C3YF-1RF three-blade aluminum propeller: listing field 129.41 SMOH; serial QG1930B; notes state TT 195.48, installed new in 2016, overhauled September 2013, governor overhauled 7 July 2022, polished spinner. Modifications/conversions: Knots2You RMD wing tips (FAA STC SA01787SE); Hartzell PHC-C3YF-1RF/F7663-4T three-blade propeller and C-3570(P) spinner (FAA STC SA01024CH); Concorde RG325AXC battery; all external LED position, strobe and landing lights. Additional equipment: pitot cover; Bruce engine cowl plugs; Bruce fuselage cover; Bruce propeller and spinner covers; portable cabin fire extinguisher; engine winterisation plate. Seller inspection/airworthiness statements: wing-spar inspection and turbocharger AD complied with; all service bulletins complied with; 100-hour annual inspection completed April 2026; ARC stated valid through April 2027; airworthy: yes.
Specifications subject to verification by purchaser |
